Steamco Engines Australia



Steamco Engines Australia are based in Victoria Australia and is still in production.
My personal opinion is these are one of the best made brands of engine in their price range.

They currently offer only two stationaries, the STC-01 stationary engine and the STC-04 overtype engine.
Both engines are made of copper and brass, silver soldered on a steel base with steel flywheels. They are great runners and nice to look at.

They used to offer a marine engine and a complete boat fitted with this engine. They come up rarely on ebay and are worth getting if you have the cash.

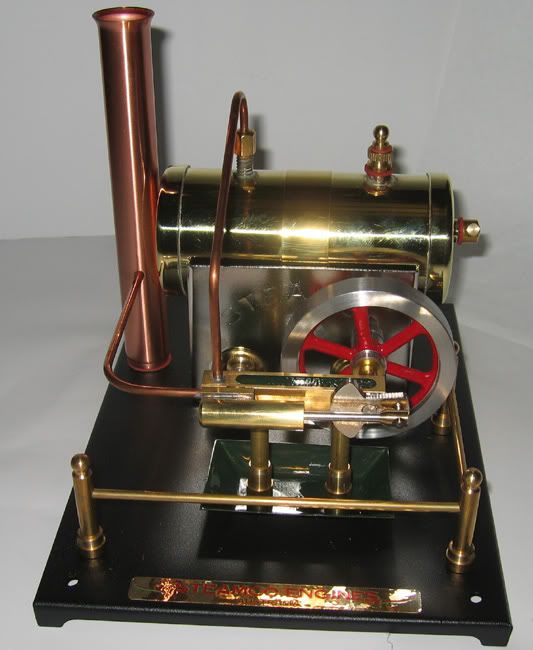

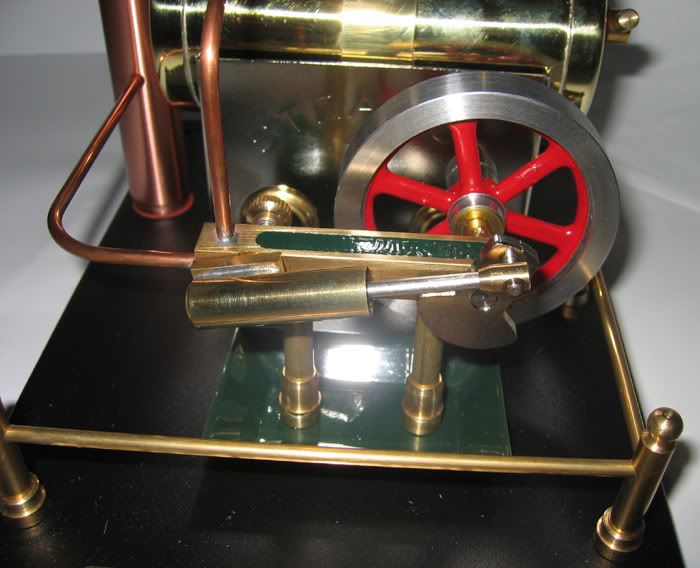

STC-01
STC-01

Cylinder Bore 8mm
Cylinder Stroke 19mm
Flywheel Diameter 60mm
Solid fuel fired
Height 165mm
Length 195mm
Width 150mm







Download the STC-01 Instruction STC01 Instructions.pdf

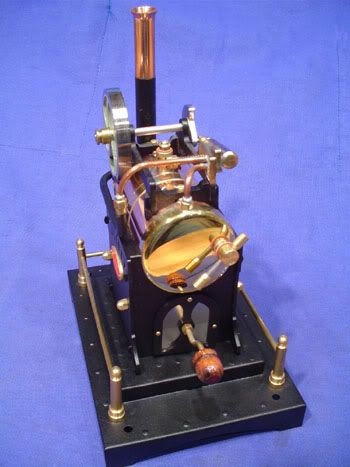

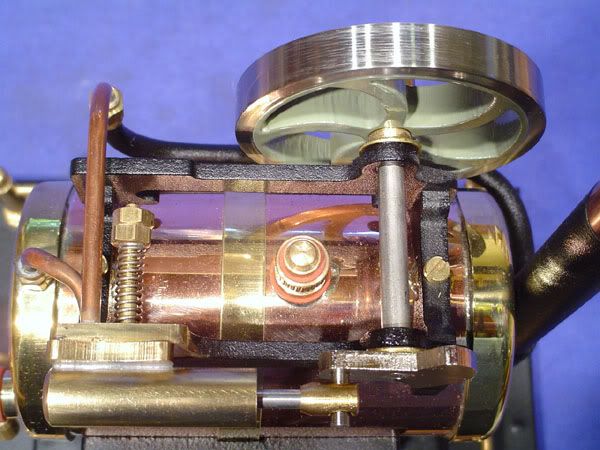

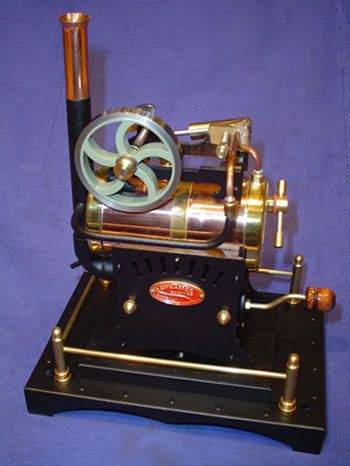

STC-04

STC-04

Cylinder Bore 8mm
Cylinder Stroke 19mm
Flywheel Diameter 54mm
Solid fuel fired
Height 170mm
Length 120mm

Width 235mm


photos 2007 IndianaRog


photos 2007 IndianaRog


photos 2007 IndianaRog

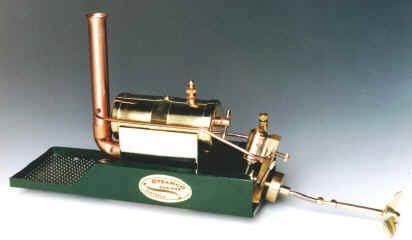

STC-02 Marine Engine


This model is now discontinued but if you are lucky you may find one

Here are the specs on it
Engine                     Double Acting Oscillating
Brass Boiler            Silver Soldered
Cylinder Bore         8mm
Cylinder stroke       12.7mm
Lubricator               In Line
Propeller                 3 Bladed, 50mm diameter
Fuel                        Spirit Tablets
Length                    280mm
Width                     100mm
Height                     190mm

Cost when new $375 Australian

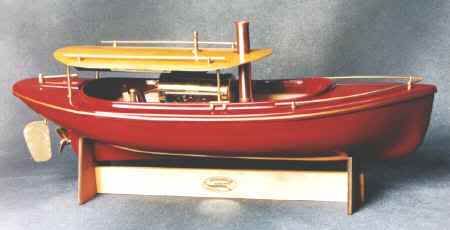

River Launch STC-03


This model is now discontinued but if you are lucky you may find one

Here are the specs on it
Engine                     Double Acting Oscillating
Brass Boiler            Silver Soldered
Cylinder Bore         8mm
Cylinder stroke       12.7mm
Lubricator               In Line
Propeller                 3 Bladed, 50mm diameter
Fuel                        Spirit Tablets
Length                    660mm
Width                     190mm
Has mounting for RC steering

Cost when new $850 Australian
